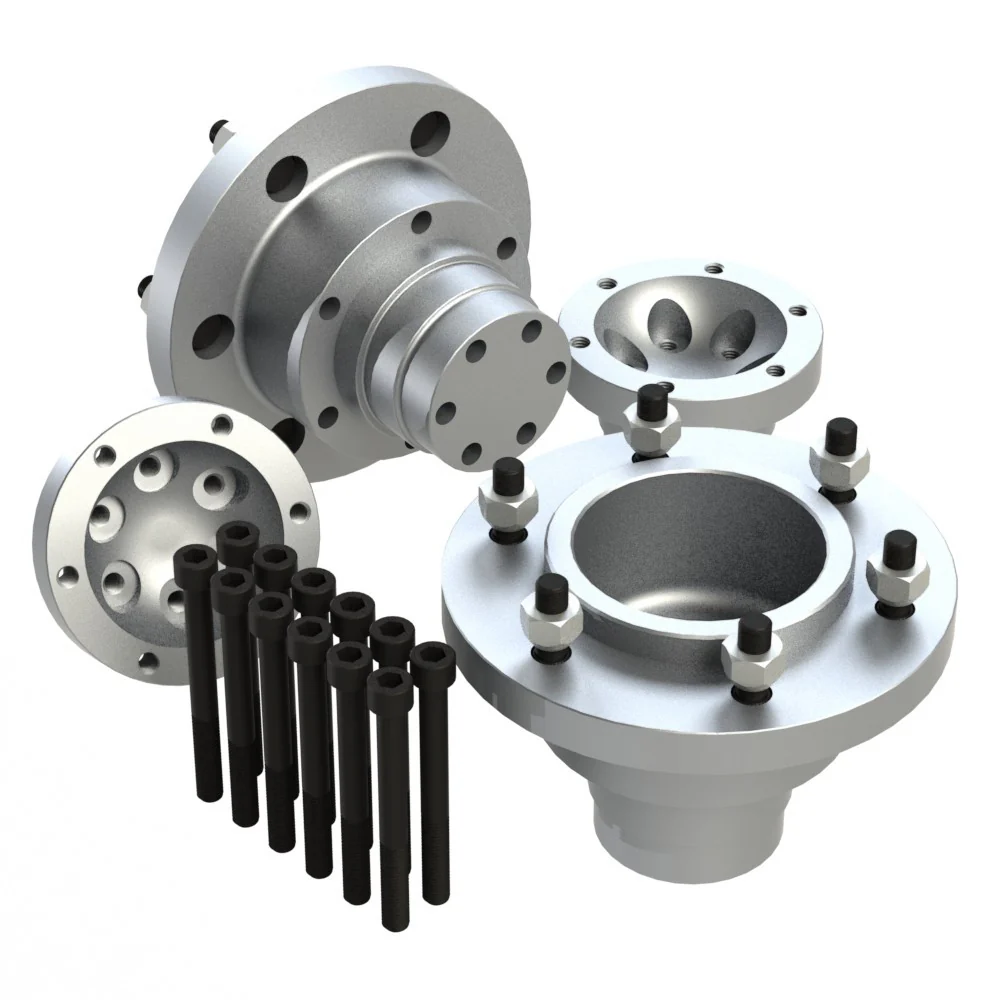

Two wheel hubs (CV2-25), two CV hubs (CV2-15) and twelve M10 capscrews.
Hubs have mounts for brake rotors: 82mm locating diameter & 6x M10 holes on 100mm PCD.

Has a 108mm location diameter for wheel.

Made from 6061 T6 Aluminium. The CV2-25 hubs are drilled for 6 stud 139.7mm PCD. Includes 7/16" UNF wheel studs and taper wheel nuts.

This hub kit is suitable for PIRCV and CV2 rear suspension.

Please note, although these hubs have rotor mounts they can still be used without hub rotors, in combination with the inboard XVS brake.

Part no. CV2-25 KIT
