PIRCV Wheel Plates Laser File

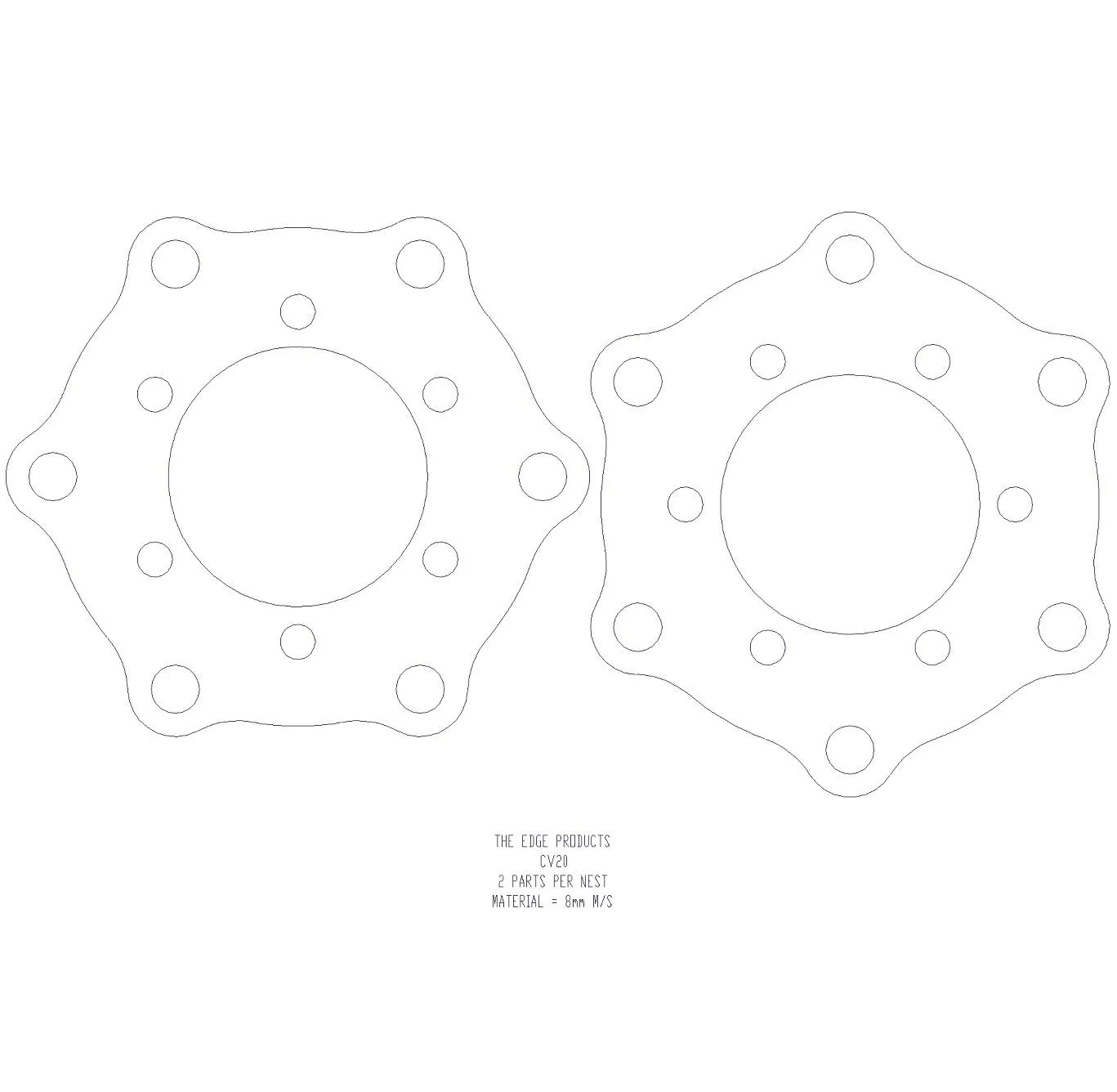

Laser cutting file for the PIRCV wheel plates (two plates).
This design is similar to the plans, but refined with a wasted away outer profile to save weight.
Laser cutting file contains two plates (left and right). Note plates require further drilling in accordance with the plans.
Part number: CV20 8mm
Description:Â Rear suspension wheel plates
Material: 8mm Mild Steel
Number of parts: 2
File type: DXF
Laser cutting files: the enclosed DXF file(s) should be provided directly to your local laser cutter. In order to view DXF files on your computer we recommend the free viewer DWGSee.
