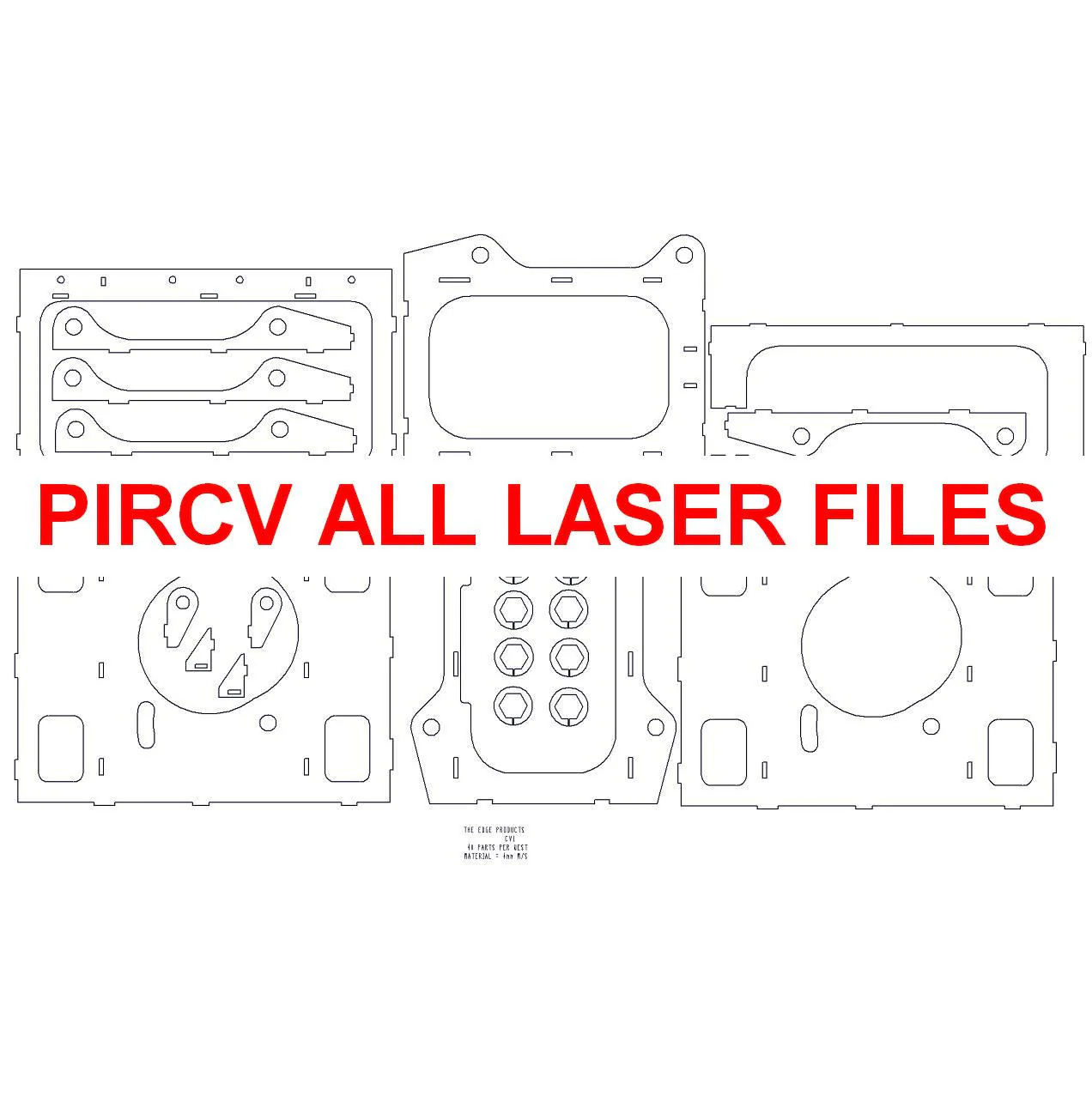

PIRCV All Laser Cutting Files
Laser cutting files for all plates in the PIRCV rear suspension including:
- Centre housing plates (CV1)

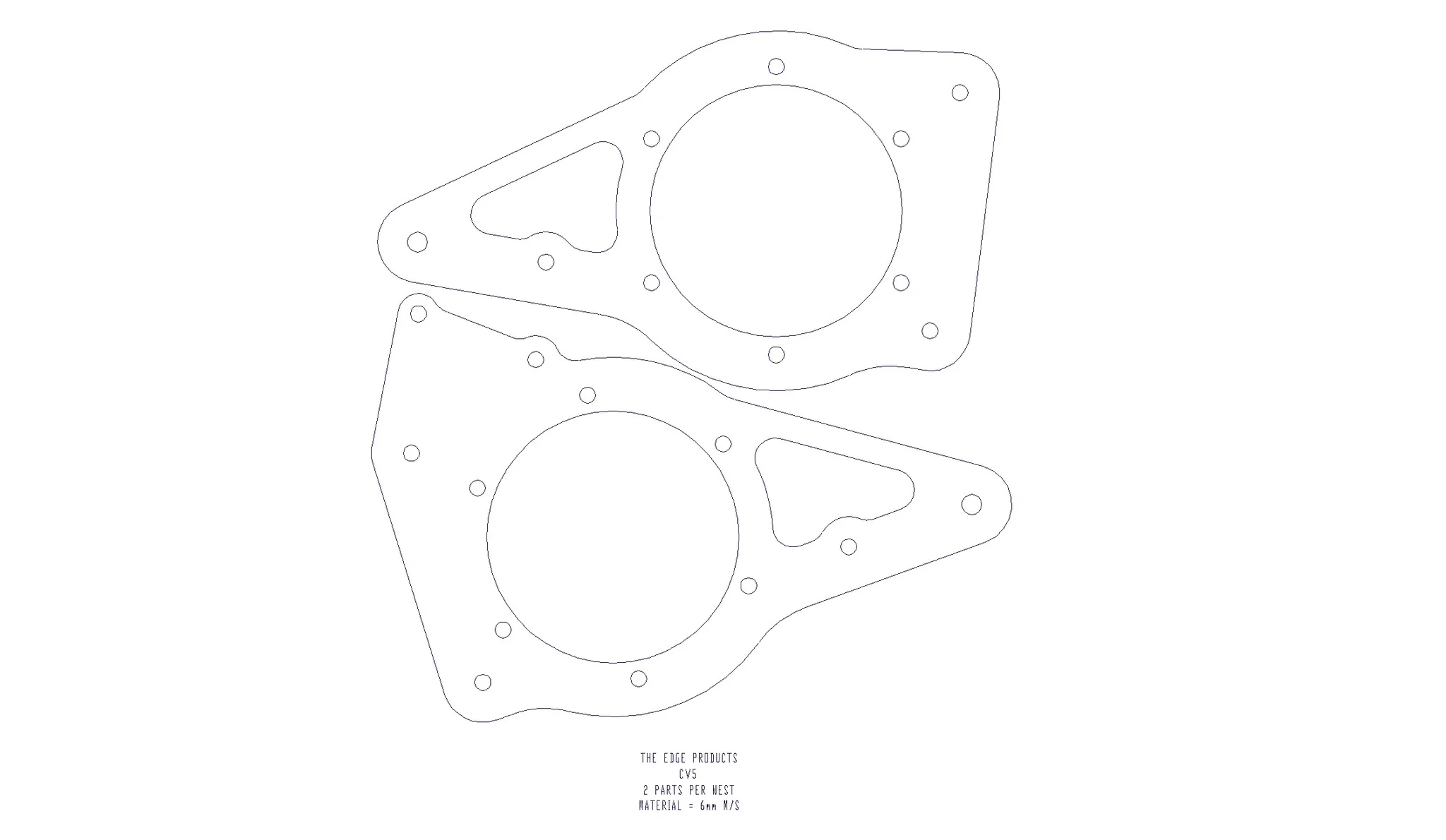

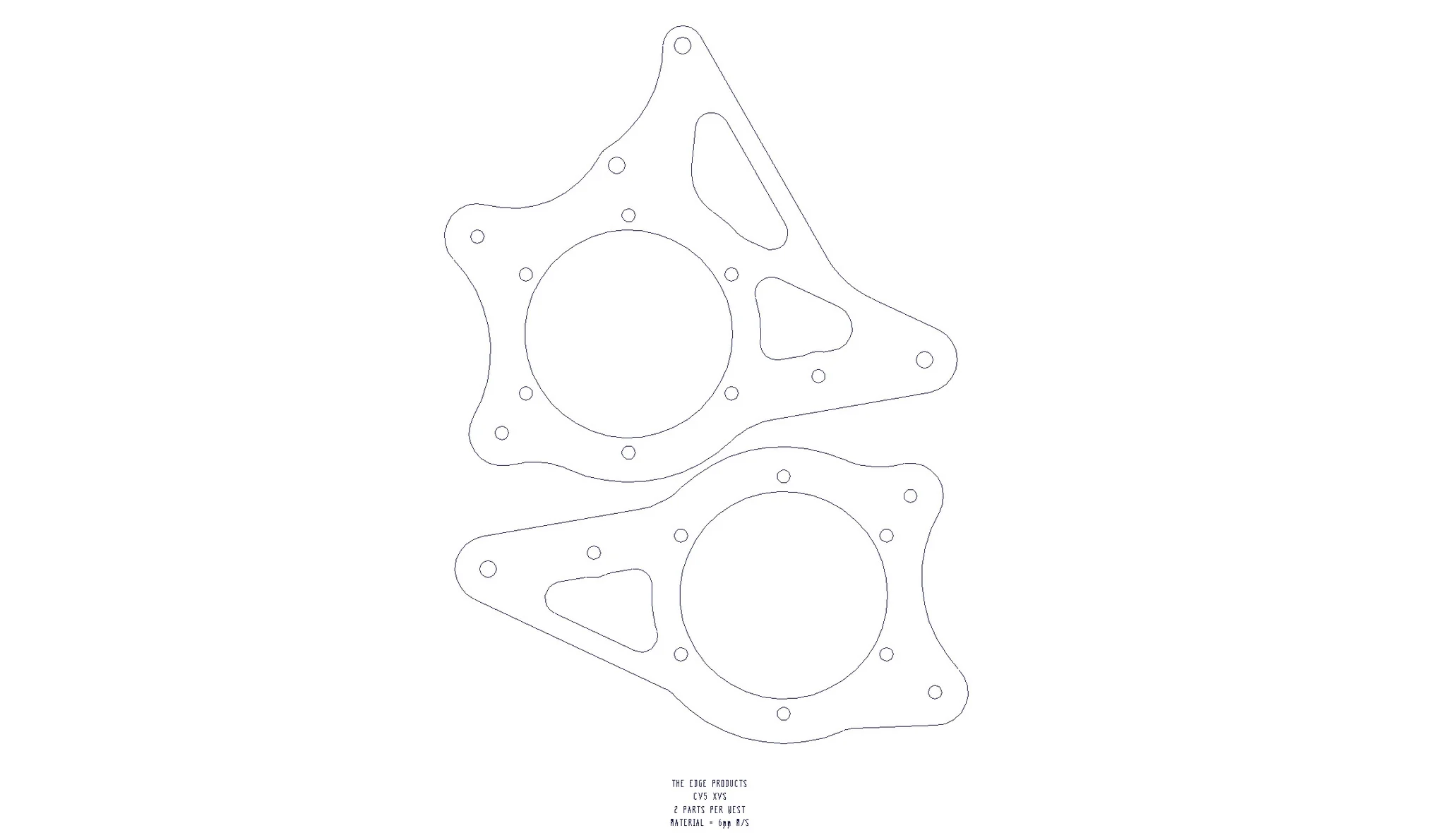

- Adjuster plates (CV5 or CV5-XVS)

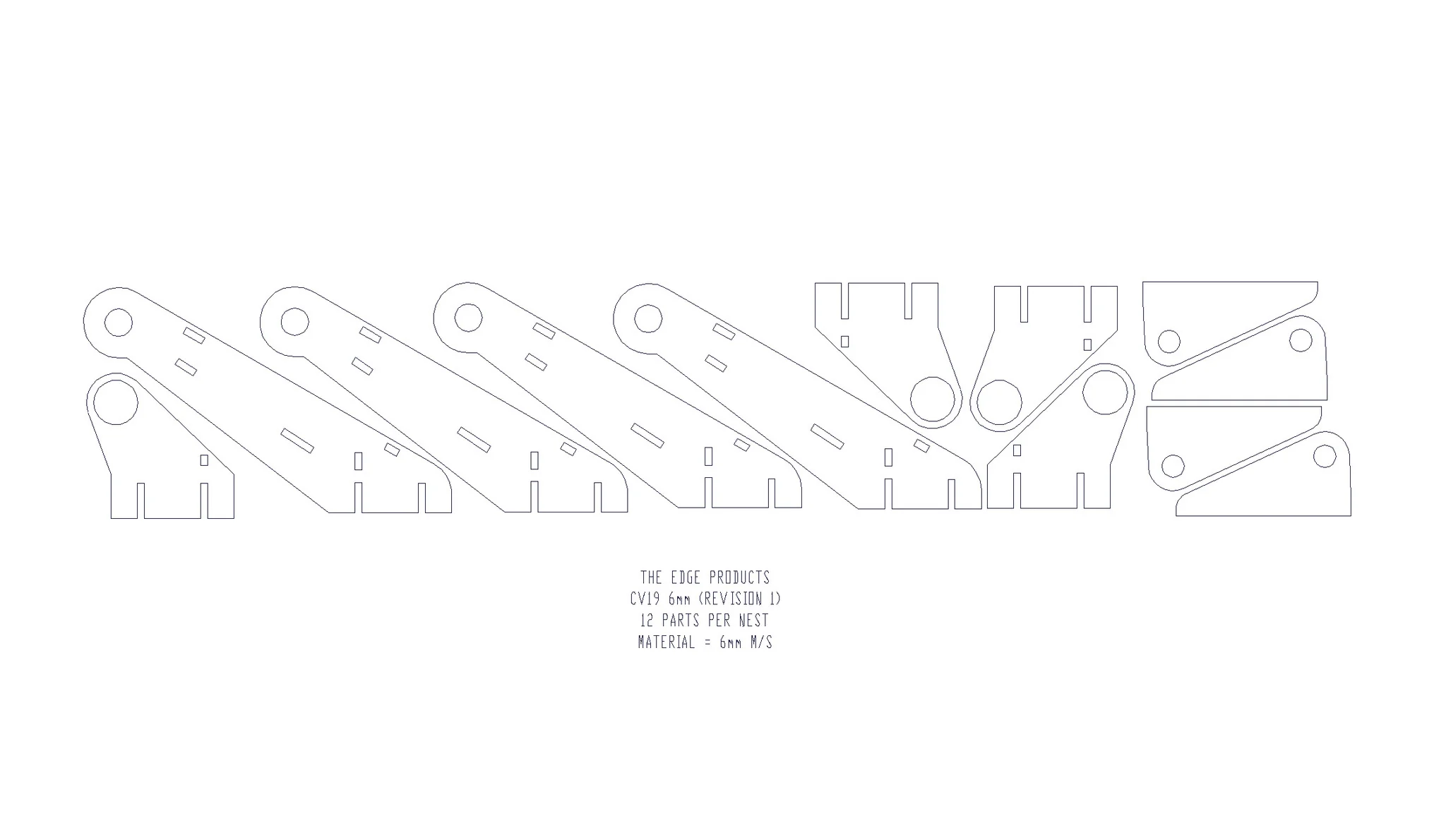

- Upright plates (CV19)

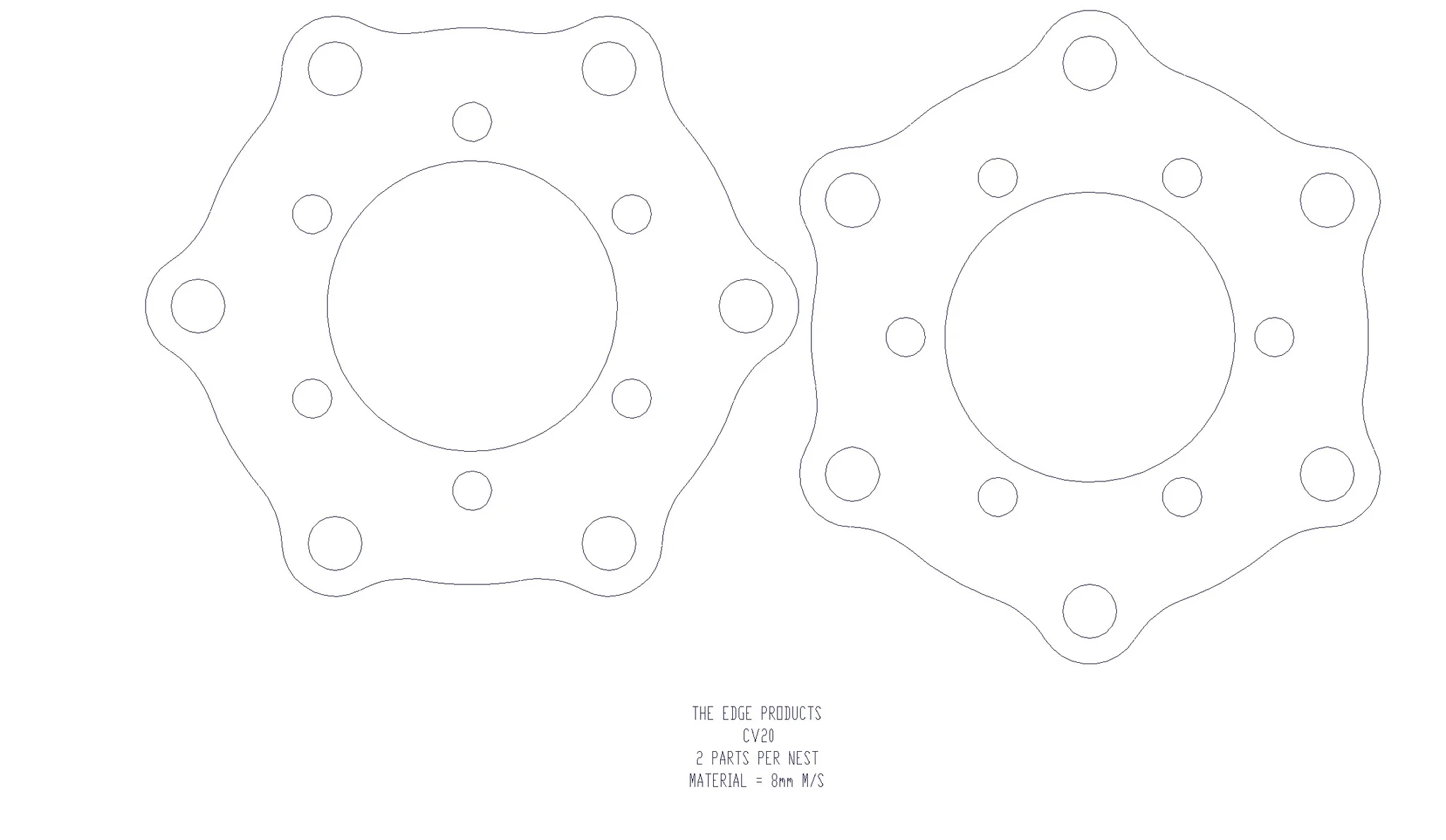

- Wheel hub plates (CV20)
- Bashplate
Please note: both sets of adjuster plates are included (original for CAL032 caliper and upgraded for XVS caliper). Only one set is required, check which is appropriate for your project before contacting your laser cutter.
Laser cutting files: the enclosed DXF file(s) should be provided directly to your local laser cutter. In order to view DXF files on your computer we recommend the free viewer DWGSee.
