55 Tooth 530-Pitch Sprocket (4x101.6 Mount) Laser Cutting File

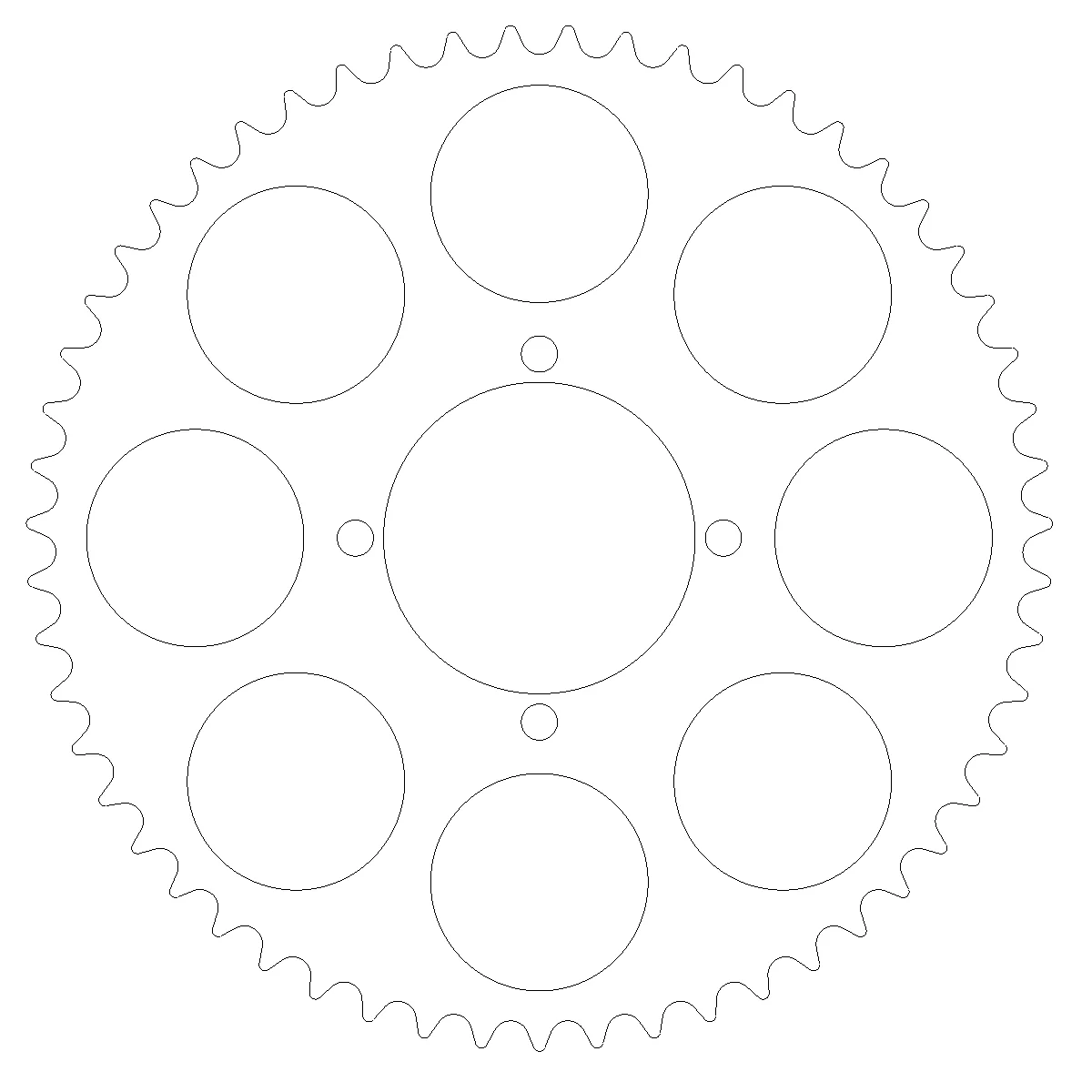

Laser cutting file for a 55-tooth drive sprocket.
To be cut from 8mm mild steel, suits 530-pitch motorcycle chain.
4 x 101.6mm bolt pattern with 86mm internal bore. Designed for the Piranha II but can be fitted to the Sidewinder. Note does not have mounting holes for the Sidewinder sprocket chain guide plates.
Laser cutting files: the enclosed DXF file(s) should be provided directly to your local laser cutter. In order to view DXF files on your computer we recommend the free viewer DWGSee.
Laser cutting file for a 55-tooth drive sprocket.
To be cut from 8mm mild steel, suits 530-pitch motorcycle chain.
4 x 101.6mm bolt pattern with 86mm internal bore. Designed for the Piranha II but can be fitted to the Sidewinder. Note does not have mounting holes for the Sidewinder sprocket chain guide plates.
Laser cutting files: the enclosed DXF file(s) should be provided directly to your local laser cutter. In order to view DXF files on your computer we recommend the free viewer DWGSee.
Description
Laser cutting file for a 55-tooth drive sprocket.
To be cut from 8mm mild steel, suits 530-pitch motorcycle chain.
4 x 101.6mm bolt pattern with 86mm internal bore. Designed for the Piranha II but can be fitted to the Sidewinder. Note does not have mounting holes for the Sidewinder sprocket chain guide plates.
Laser cutting files: the enclosed DXF file(s) should be provided directly to your local laser cutter. In order to view DXF files on your computer we recommend the free viewer DWGSee.
